Powered Up: Airlift AS

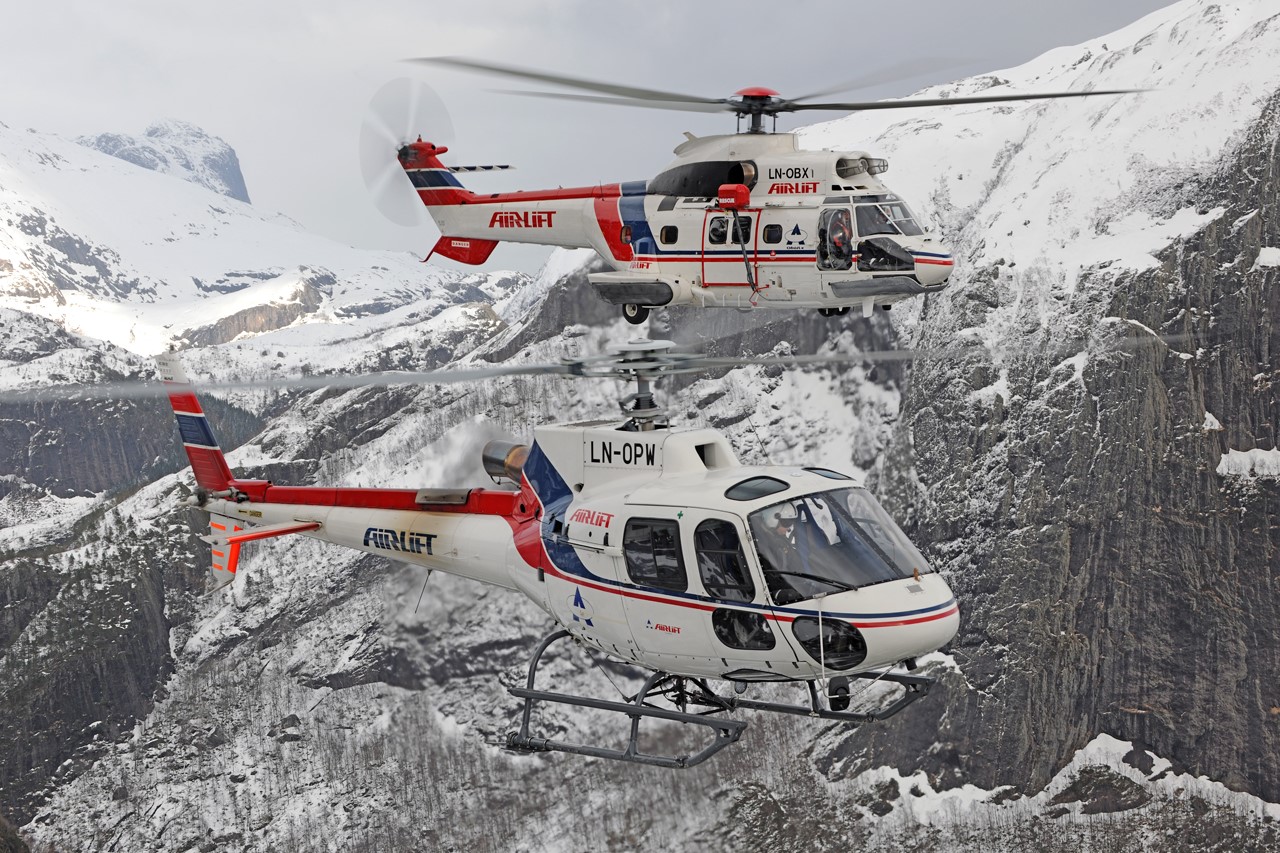

One of Airlift's Airbus AS350 B3 and its sole AS332 C Super Puma. Photo: Anthony Pecchi

One of Airlift’s Airbus AS350 B3 and its sole AS332 C Super Puma.
Photo: Anthony Pecchi

Written for Vertical Magazine – October/November 2018

Norway is a ruggedly beautiful country that stretches northwards 2,500 km from the North Sea towards the North Pole.

This western-most country in Scandinavia is home to just 5 million people – 1 million who live in the urban areas of Oslo and Bergen, with the rest spread out all over the country.

For over 30 years, utility helicopter operator Airlift AS has helped to connect Norway from its base in Forde, in the country’s south-west.

“We are busy with power line construction, because you need power to every house in Norway,” Børre Eimhjellen, the operator’s chief commercial officer told Vertical.

“We have a very long coastline, rough terrain, high mountains and deep fjords. It’s very challenging to get roads built, powerlines installed and have communication between cities and small towns.”

Airlift began in 1986, when local businessman Torbjørn Lie established the company at Forde Bringeland Airport.

Lie recognized the opportunity for helicopter operations to support the construction and maintenance of the numerous hydro-electric power plants in the region.

Construction company EEG Henriksen held 95% of the shares of the new venture, which started with a single Bell 206 Jet Ranger.

Just a year later, the fleet had expanded to include a Bell 205, a Bell 214, and the first of Airlift’s Eurocopters, an AS350 B1.

Now, more than 30 years later, Airlift has focused on the AS350 B3 as its “go-to” helicopter. It has 12 of the utility machines in its fleet, along with two AS350 B2s, three Leonardo AW169s, and an Airbus AS332 C Super Puma.

The fleet is spread throughout a number of bases in the region. Four 350s and the heavy-lift Super Puma are at Airlift’s main base in Forde, three 350s are in Kinsarvik, and one 350 is in Stranda with four more machines working at nearby project sites.

Two of the company’s 350s are currently dry leased to another operator, leaving Airlift with an even dozen machines.
Airlift’s three AW169s are tasked specifically with marine work. The Leonardo crews fly sea pilots to vessels and perform crew changes for the TeeKay Corporation’s fleet of shuttle tankers that transfer oil from offshore production platforms to the mainland.

Airlift has three Leonardo AW169s, which are specifically used for marine work off Norway’s northern coast.
Photo: Tom Andreas Østrem

Two of the bright-yellow 169s are based in Hammerfest, on Norway’s far north coast, with a spare on the southern coast in Bergen.

And although the offshore work is an important diversification for the company, it has stayed focused over Norway’s rugged terrain.

“Airlift is a specialist in constructing hydro power towers and stringing electrical lines. We have worked together with our customers for a long time to specialize this operation,” said Eimhjellen.

The towers have been engineered in Norway and are designed to meet the lifting and handling capabilities of the AS350 B3.

“The way we build the towers in Norway may differ from how it’s done by other operators around the world, where they require docking,” explained Arvid Holen, one of Airlift’s experienced power line pilots.

In a docking installation, guides are attached to the tower’s components. It’s up to the pilot to maneuver the bulky load into position and use the guides to slide the pieces together.

But Airlift has honed its assembly process without docking, according to Holen.

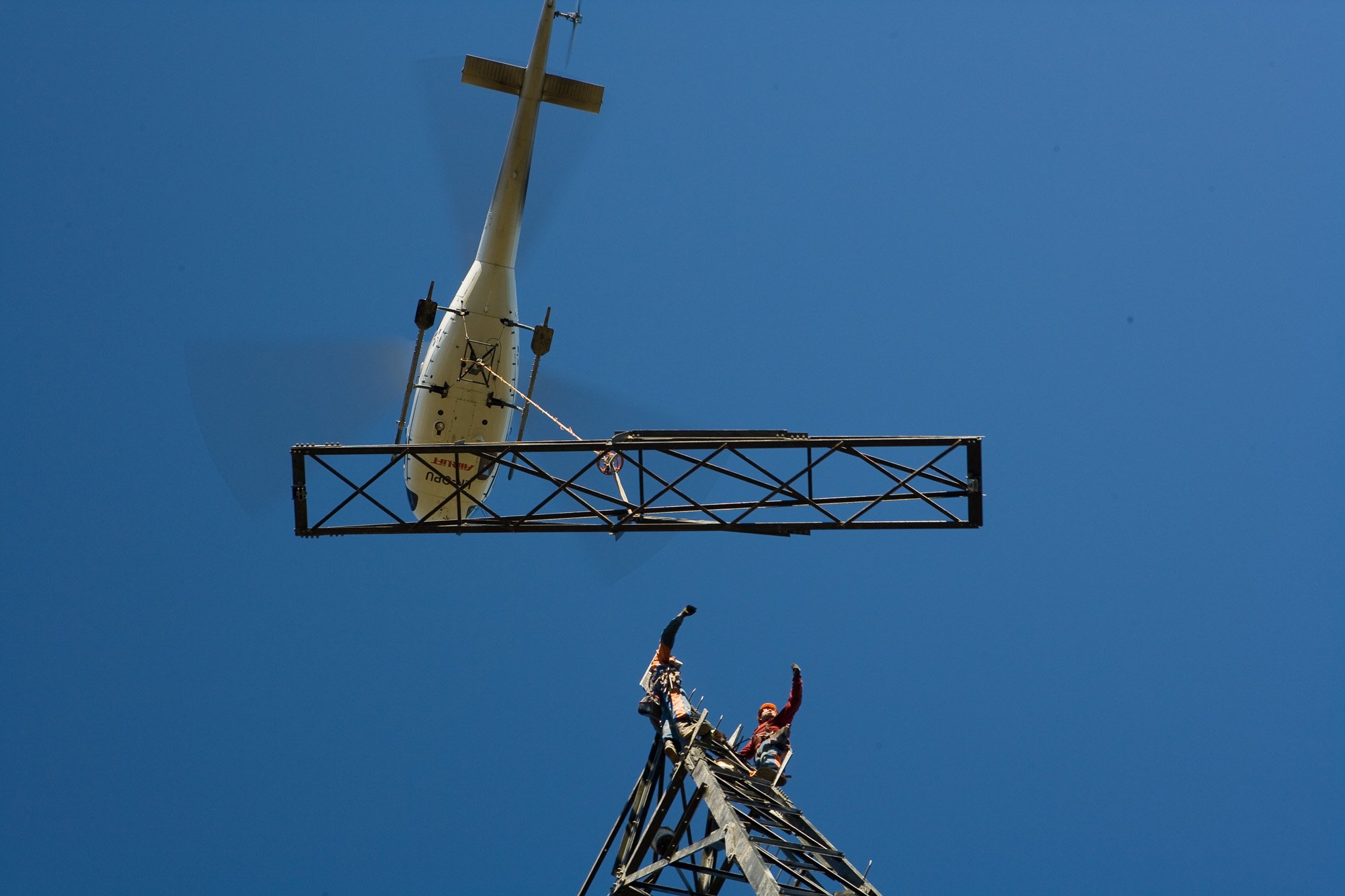

“We’re actually flying the towers piece by piece. There are workers standing in the towers receiving the part and mounting it. That way, we can use the AS350 instead of a heavier helicopter.”

“They manually insert and tighten the bolts or attach sections to pulleys until the section is stable enough for the pilot to release the load. It still requires a steady hand, but having proficient personnel in the tower makes the job a lot easier, as this is really a team effort.”

Once the towers are in place, stringing the power lines is the next challenging operation.

Airlift has become a specialist in constructing powerline towers, with the towers in Norway designed to meet the lifting and handling capabilities of the AS350 B3. Photo: Anthony Pecchi

Airlift has become a specialist in constructing powerline towers, with the towers in Norway designed to meet the lifting and handling capabilities of the AS350 B3.  Photo: Anthony Pecchi

To reduce the workload for the pilots, Airlift has equipped two AS350s with a side-mounted hook to pull the pilot lines.

“This is a known, but not widespread method of pulling lines. The pilot has more control of the line, can see the line better and the helicopter has more line-pulling capacity, so we can pull longer lines more safely, efficiently, and faster,” said Eimhjellen.

With Norway’s weather extremes, the electrical grid’s power lines are subject to icing. It’s critical to remove a significant buildup of ice before the weight damages or breaks the lines.

Airlift has come up with two ice removal systems, each deployed depending on the type and severity of the ice accumulation.

Developed by Airlift in collaboration with the Norwegian-state power company Statnet, the IFIS system is deployed on a line under the helicopter. The unit is dragged along transmission lines, scraping the ice away, and has an integrated, pilot-controlled electronic vibration system to tackle heavier buildups.

But the other system uses a brute force approach.

“We have had quite a lot of success with something as simple as a wooden pole that is attached to the long line. You just knock it gently into the conductor or pull it alongside, and the ice drops off. It’s kind of like a wooden hammer,” said Eimhjellen.

An Airlift AS350B3 at work on Norway's power grid. Photo: Airlift AS

An Airlift AS350 B3 at work on Norway’s power grid. Photo: Airlift AS

About 50% of the revenue generated by the AS350 fleet is related to power line construction and maintenance. The machines, along with the Super Puma, are also deployed to support construction of new hydro-electric dams.

Other AS350 assignments include work for the Norway’s telecommunications companies, such as placing cell phone and emergency communication grid antennas and repeaters on mountaintops.

The AS350s and the Super Puma have also been deployed on Arctic and Antarctic expeditions for the Norwegian Polar Institute, and ecological projects including polar bear and bowhead whale counts.

The company’s helicopters have been based as far north as Svalbard, the Norwegian island group located just 1,000 km from the North Pole.

Film and photo shoots used to be important to Airlift, but those projects have been “declining every year, so that it’s almost close to nothing. Drones have taken over this part of the business,” said Eimhjellen.

That’s not to say that Airlift sees the increased use of drones to solely be a threat to the company’s bottom line. In fact, Eimhjellen explained that Airlift is being proactive in developing a strong relationship with Norway’s drone operators.

“We’re planning to have conferences and training courses to make sure that drone operators are aware of how the helicopter business is working. We want to help the drone industry adapt to the aviation industry, so that we don’t have any conflicts. We must make sure that safety is not compromised,” he said.

Eimhjellen sees the potential of drones augmenting Airlift’s helicopter operations. “Our plan is to operate drones in the future, to inspect and make condition reports on the power grid system.”

He expects that Airlift will focus on line-of-sight drone operations but is keeping an eye on beyond-visual-line-of-sight (BVLOS) initiatives in other countries.

“Here in Norway, you don’t have a big, flat surface. You have lots of mountains, and that is challenging when it comes to drone operations. If we can make it work in Norway, we can probably make it work anywhere.”

While drones might be in the company’s future, Airlift’s 105 employees, including a cadre of 48 pilots, continue to support and fly utility missions all over the country.

Airlift powerline crew and and the Super Puma. Photo: Anthony Pecchi

New pilots are primarily recruited from within the company, having gained experience with Airlift as a loadmaster.

Although loadmasters join the company with a helicopter pilot’s license, it can take years before moving into Airlift’s pilot training process, and then on to be a fully capable pilot-in-command.

Similar to other operators, Airlift’s loadmasters ensure that external loads are properly attached to the helicopters and assist the pilots in safely clearing the flight operations area.

During ferry flights, loadmasters are an integral part of the crew, handling the radios and navigation, and helping the pilots.

“They have a pilot’s license when they come to Airlift, and it will take a lot of time before we can call them a pilot. But they will get a lot of high-value experience before they start their pilot training,” said Eimhjellen.

Flying missions over Norway’s inhospitable terrain and through its ever-changing and challenging weather requires a strong safety culture, managed by Tom Østrem, AS350 pilot and Safety Manager.

“My job is overseeing and maintaining the Safety Management System (SMS). It’s important that it is a system that isn’t just something you have on the books, it has to be a system that actually works. I’m ensuring that that is a living system that is facilitating all the functions within an effective SMS,” he said.

Østrem recognizes the importance of sharing safety information between operators worldwide and is proactive in creating incident summaries for Airlift’s pilots.

“On the global scale, we’re a small company, so to compensate for that we have to learn from the mistakes of others as well as our own. If we are not able to learn by our own mistakes, we have to learn from the mistakes of others. It’s important for us to gather information about incidents that have happened globally that share similarities with our operations to raise awareness and help us identify hazards,” he said.

“What we’re trying to convey to the pilots and technicians is that the SMS relies on everyone. It’s critical that they understand the vital roles they play in SMS and as a part of a healthy safety culture and are able to report [incidents] without fear of retribution.”

After spending years with Airlift, moving from loadmaster to pilot, crews understand the company’s focus on safety, and have the training to handle more and more challenging assignments.

“We get to shape pilots with ‘the Airlift Spirit’ from the get-go, and mold them into the pilots we need them to be.”

Like many small operators, pilot training at Airlift takes place in the company’s machines. However, Norway’s Civil Aviation Authority and Norwegian operators are now focusing on the availability of an AS350 simulator in Scandinavia.

“What has been communicated from the CAA-N is that once the simulator is available, all operators will be required to use it. Hopefully within the next year be able to do training and proficiency checks in the simulator, and to be able to do things we can’t fully train for in an actual aircraft, like critical failures inside the height-velocity diagram and doing full-down autos. Getting those motor skills should be a great safety enhancement,” said Østrem.

And while there may be friction between operators and regulators in other countries, that isn’t the case in Norway, according to COO Eimhjellen.

“We find it very friendly. We like strict regulations, because we want to operate with a high-level of proficiency and with a high focus on safety. We benefit from having a very good relationship with the air authorities in Norway.”

Going forward, Eimhjellen expects to maintain Airlift at its current size, but acknowledges that it may be a struggle.

“I believe that the future is challenging, because the market is pushing prices downwards. Customers are asking for an hourly price and a per-minute price, and they don’t ask questions regarding competence and safety. We have to somehow train the market that higher proficiency and education is beneficial to the customer. That is very challenging, and we face it every day. Airlift is a company with long traditions, and we’re always “safety first.’”

And while the future unfolds, Airlift pilots like Tom Østrem will keep flying over a remarkable country.

“My base in Kinsarvik is really scenic. You’re flying down four waterfalls on your final approach. Even after flying the same approach for the past 10 years, only last week I was flying into base and thinking to myself, ‘This is awesome!’
